MAPPING INVASIVE AQUATIC VEGETATION IN THE SACRAMENTO-SAN JOAQUIN DELTA USING HYPERSPECTRAL IMAGERY

The ecological and economic impacts associated with aquatic invasive species are of critical concern to land managers. The ability to map the extent and severity of invasions would be a valuable contribution to management decisions relating to control and monitoring efforts. We investigated the use of hyperspectral imagery for mapping invasive aquatic plant species in the Sacramento-San Joaquin Delta in the Central Valley of California, at two spatial scales.

Kefauver Mapping Invasive Plant species in the Sacramento-San Joaquin Delta region using Hyperspectral imagery

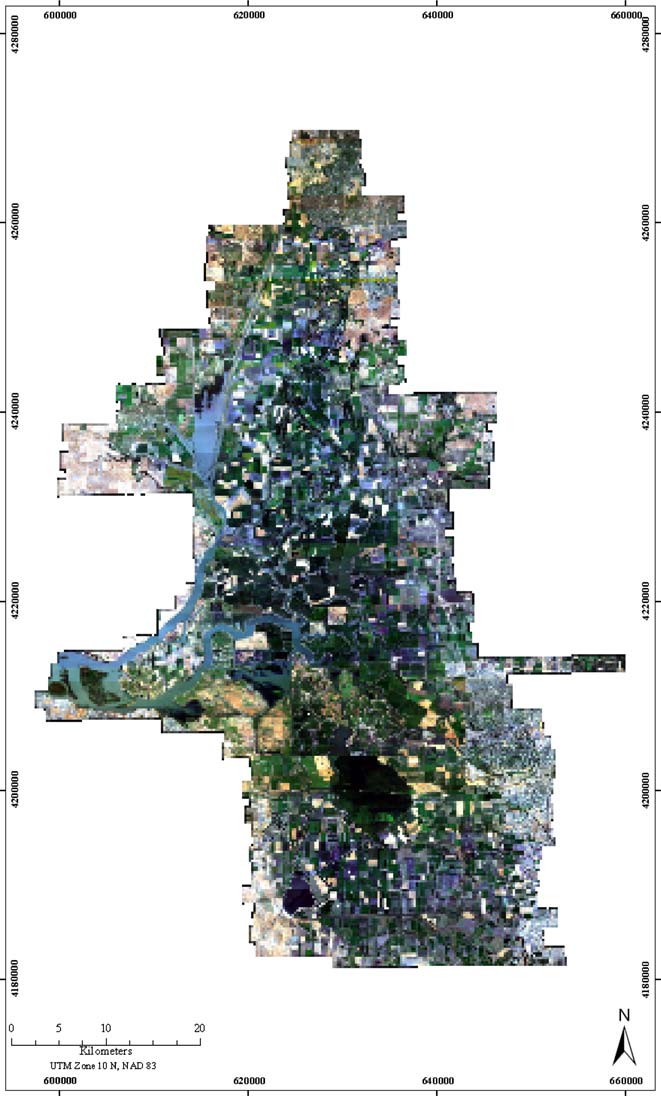

Sixty-four flightlines of HyMap hyperspectral imagery were acquired over the study region covering an area of 2,139 km2 and field work was conducted to acquire GPS locations of target invasive species.

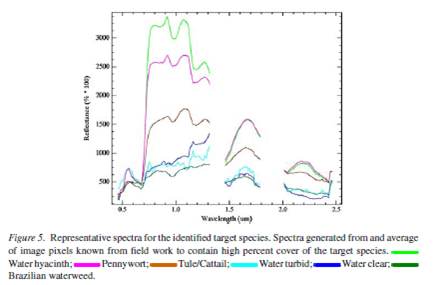

invasive plant signatures for delta

We used spectral mixture analysis to classify two target invasive species; Brazilian waterweed (Egeria densa), a submerged invasive, and water hyacinth (Eichhornia crassipes), a floating emergent invasive. At the relatively fine spatial scale for five sites within the Delta (average size 51 ha) average classification accuracies were 93% for Brazilian waterweed and 73% for water hyacinth. However, at the coarser, Delta-wide scale (177,000 ha) these accuracy results were 29% for Brazilian waterweed and 65% for water hyacinth. The difference in accuracy is likely accounted for by the broad range in water turbidity and tide heights encountered across the Delta.

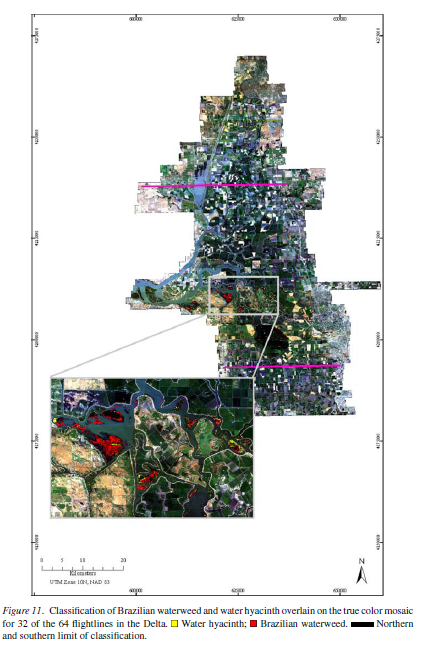

species classification delta project

These findings illustrate that hyperspectral imagery is a promising tool for discriminating target invasive species within the Sacramento-San Joaquin Delta waterways although more work is needed to develop classification tools that function under changing environmental conditions.

E. C. UNDERWOOD1,2,∗, M. J. MULITSCH1, J. A. GREENBERG1,3,
M. L. WHITING1, S. L. USTIN1 and S. C. KEFAUVER1
1Center for Spatial Technologies and Remote Sensing (CSTARS), University of California, Davis,
California; 2Department of Environmental Science and Policy, University of California, Davis,
Davis, 95616; 3NASA Ames Research Center, Moffett Field, California
